3d printed adapter for top down shots

[Mattgawn85]

Apologies if this has been done elsewhere, I couldn't find any threads dedicated to it. So I got a 3d printed bracket for a mirror to try to get some top down shots. Haven't tried in decent light (it's very much dusk here) yet but could be interesting. 3d files available via thingyverse and the mirror was a cheap plastic mirror from eBay that was about 2mm thick. Think all in all cost £11. Hopefully it's worth it, so far I'm not sure. The camera seems to have a hard time focusing despite being essentially a pin hole. Perhaps the mirror is junk. Certainly no good for video (the stabilisation goes nuts with this on) but hopefully will give some stills. 3D file attached if you want to try it out too, not my work by the way.



[brick72]

Tomorrow I get my Adapter,
I Think this is a real cool Idea and Project you had.
Thanks a lot for sharing.



[Mattgawn85]

Cool! PS cut the mirror a little bigger than 19mm to make sure you don't waste part of the sensors frame. I had to take a 19x19mm mirror off (hairy stuff on something so small) to put a bigger one on. Let me know how you get on!



[Mattgawn85]

See the bottom of this shot, the mirror like I said needs to be a little wider probably to avoid miss shooting like this. Still not bad job for a bit of a bodge.



[brick72]

Yes I thought so too.
Its a shame that this mod is not that often to see on youtube. I think its the best mod I have seen so far, because its possible to use on other drones too.



[brick72]

So Today i made a little Test, but the tello Flips over head and cant fligh. Do i need a conter weight on the backsite???



[rwittmann]

View attachment 785
See the bottom of this shot, the mirror like I said needs to be a little wider probably to avoid miss shooting like this. Still not bad job for a bit of a bodge.

That is great, how is it attached, and is it easily removable?
Great Idea!
Thanks...



[brick72]

Yes, its easy removable.
It fürs between the arms.



[ral67]

any place to get an adapter if you dont have a 3D printer ?



[brick72]

No.



[spamaro]

any place to get an adapter if you dont have a 3D printer ?

Hi, there is website for 3d print, you upload the file and they send you the printed piece.



[Bluetuga]

Hi, there is website for 3d print, you upload the file and they send you the printed piece.

Can you provide the link?



[spamaro]

Can you provide the link?

There is a lot websites, search "3d print online" in google.

Here is few websites (I didn't test them):
3D Hubs: Online manufacturing
Sculpteo | Online 3D Printing Service for your 3D design



[spamaro]

Hi,
There is other print there, i dont know if it is better or not:
Tello Mirror Clip by Jamie-Clay

And youtube demo:

To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

Accept third party cookies



[spamaro]

or this one...
DJI Ryze Tello Mirror Mount by mchlsndrn



[Max-li]

Has anyone ever thought of using a mirror from a dslr camera for this? That would have to be a perfect mirror. Wouldn't it?



[brick72]

I think that will ne to heavy.



[Max-li]

Hm okey, one would have to try it Probaly. Where Do you get a good mirror that is light? Im not shure about thous foil mirrors.



[Brandewyn-Boer]

Hm okey, one would have to try it Probaly. Where Do you get a good mirror that is light? Im not shure about thous foil mirrors.

Hard Drive platters. Find a old HDD, open it, and take out the platters. They are metal, polished to a glass like surface and with ZERO distortion. Cut it to size with a Dremmel or similar.



[Max-li]

That sounds interesting. I have to see, if i find one of these somewehre.

I ordered one of thiese 3d printed mirror holders with a small acrly mirror. But the mirror is not good at all. of course, you can see something, but the quality of the fotos is usless.

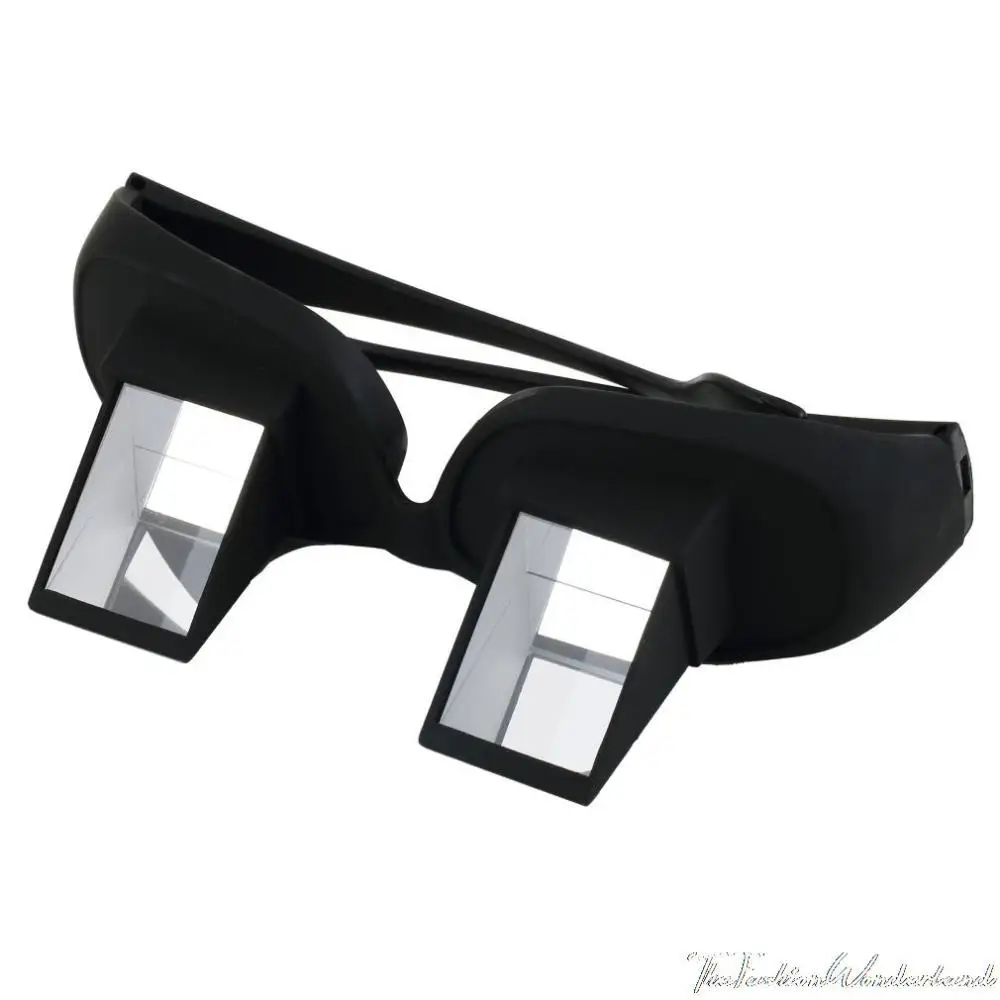

I ordered one of thiese glasses in the mean time. I have no Idee, how heavy thos prisms are, I will report, if I tested it out. (might take a while, I ordered from china)
